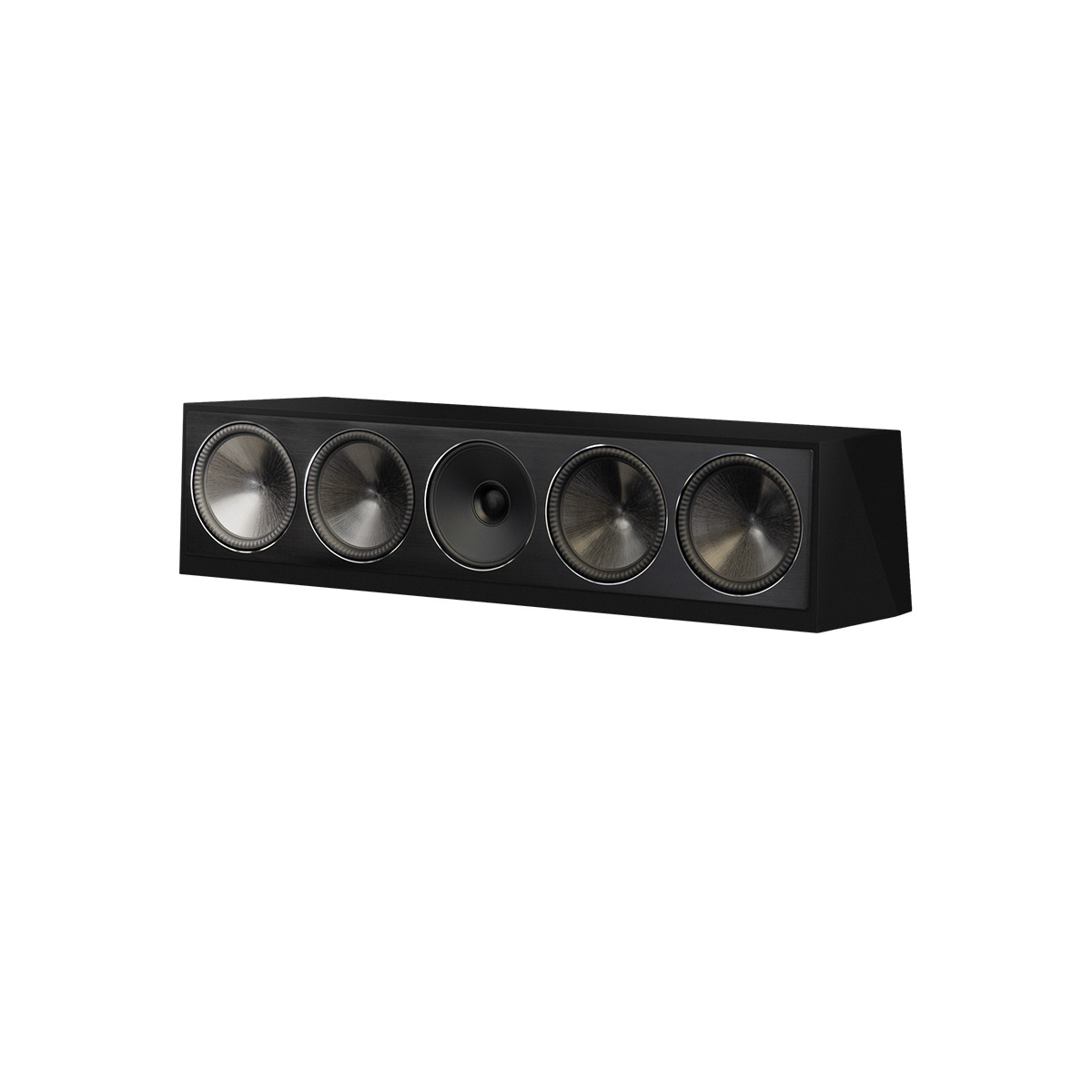

Uitvoering: Piano Black
Paradigm Loudspeakers
Founder 90C
Centerluidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Founder 90C |
| Productcategorie | Centerluidsprekers |
| Ontwerp | 4-driver, 2 passive radiator, 3 way center channel, sealed enclosure |
| Impedantie | Compatible with 8 Ω |
| Afmetingen (H × B × D) | 8.9” x 35.7” x 12.9” (22.6cm x 90.8cm x 32.7cm) |
| Wisselfilter | 2nd order electro-acoustic at 2.5 kHz (tweeter), 2nd order @ 500 Hz (bass) |
| Frequentierespons op de as | ±2dB from 55 Hz - 23 kHz |
| Frequentierespons 30° buiten de as | ±2dB from 55 Hz - 17 kHz |
| Hogetonenunit | Coaxial 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled, Patent Pending Dual Gap Motor Structure |
| Middentonenunit | Coaxial 6” (152mm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| Lagetonenunit | Twee 7" (177mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, en a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| Passieve radiatoren | Twee 7" (177mm) Ultra-High-Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCKMOUNT™ Isolation, Passive |
| Gevoeligheid (ruimte / anechoïsch) | 94 dB / 91 dB |
| Onderste grensfrequentie | 37 Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 260 W |
| Maximaal ingangsvermogen | 200 W |
| Gewicht | 48 lbs (21.8 kg) each |

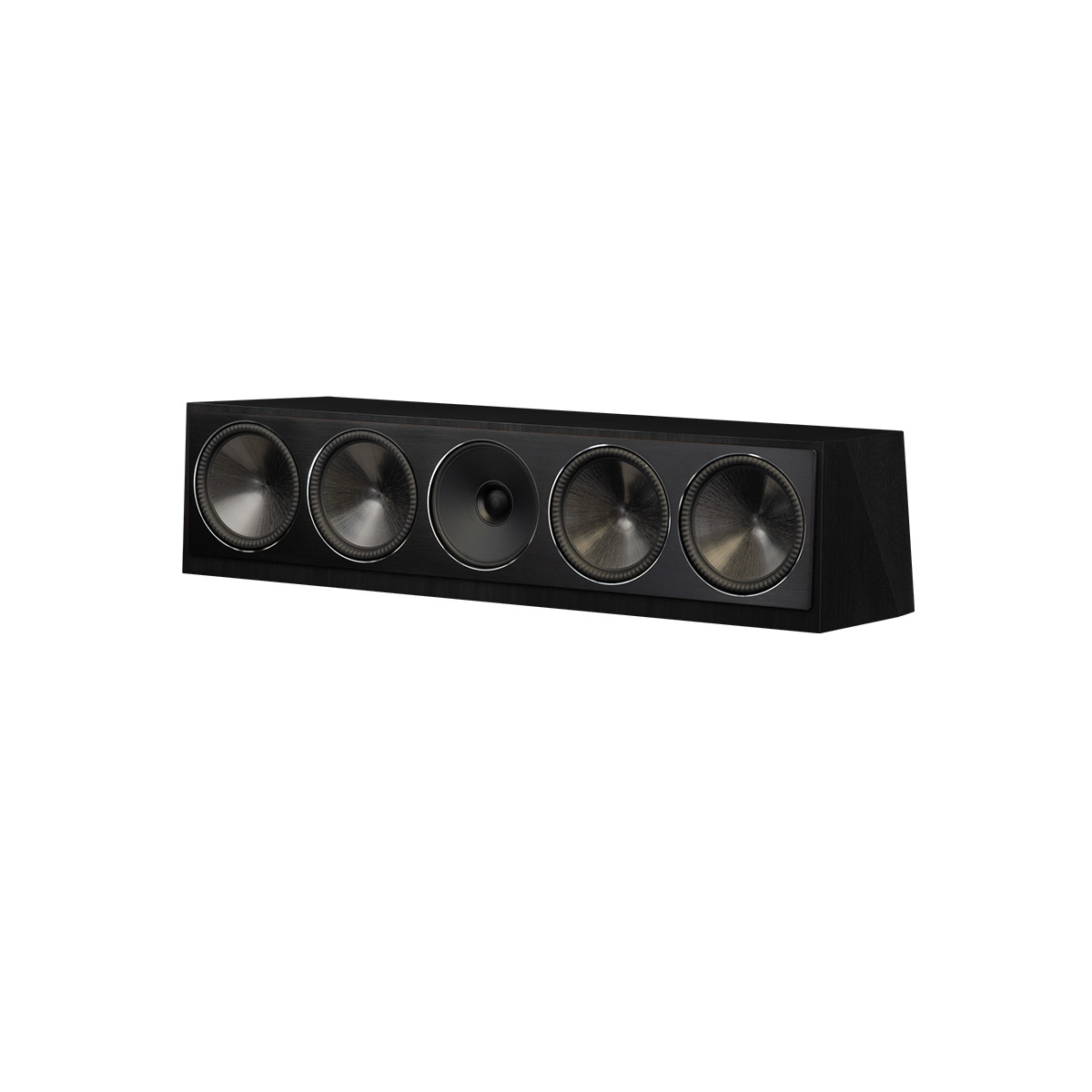

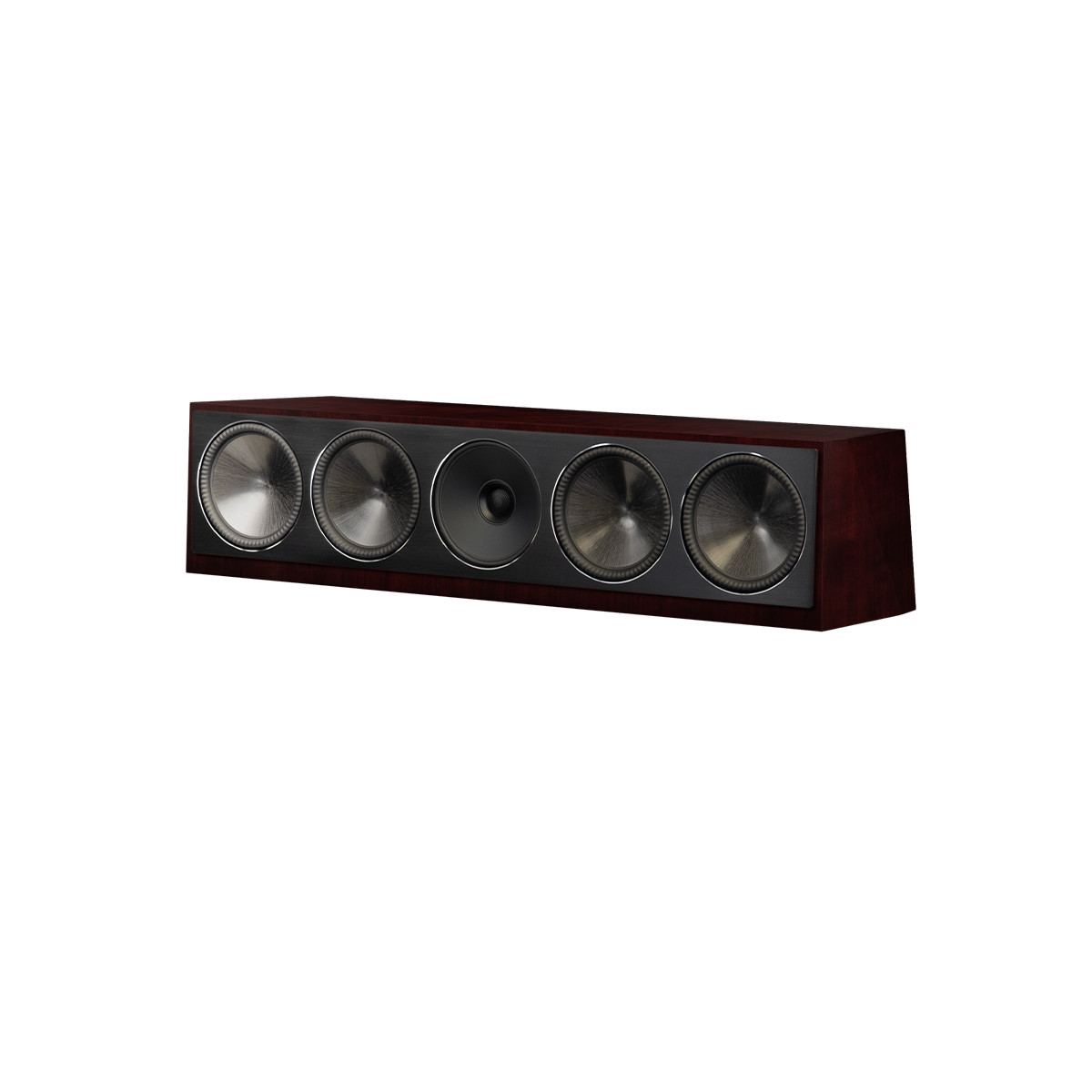

| Afwerkingen | Piano Zwart, Zwart Walnoot, Midnight Cherry, Walnoot |
