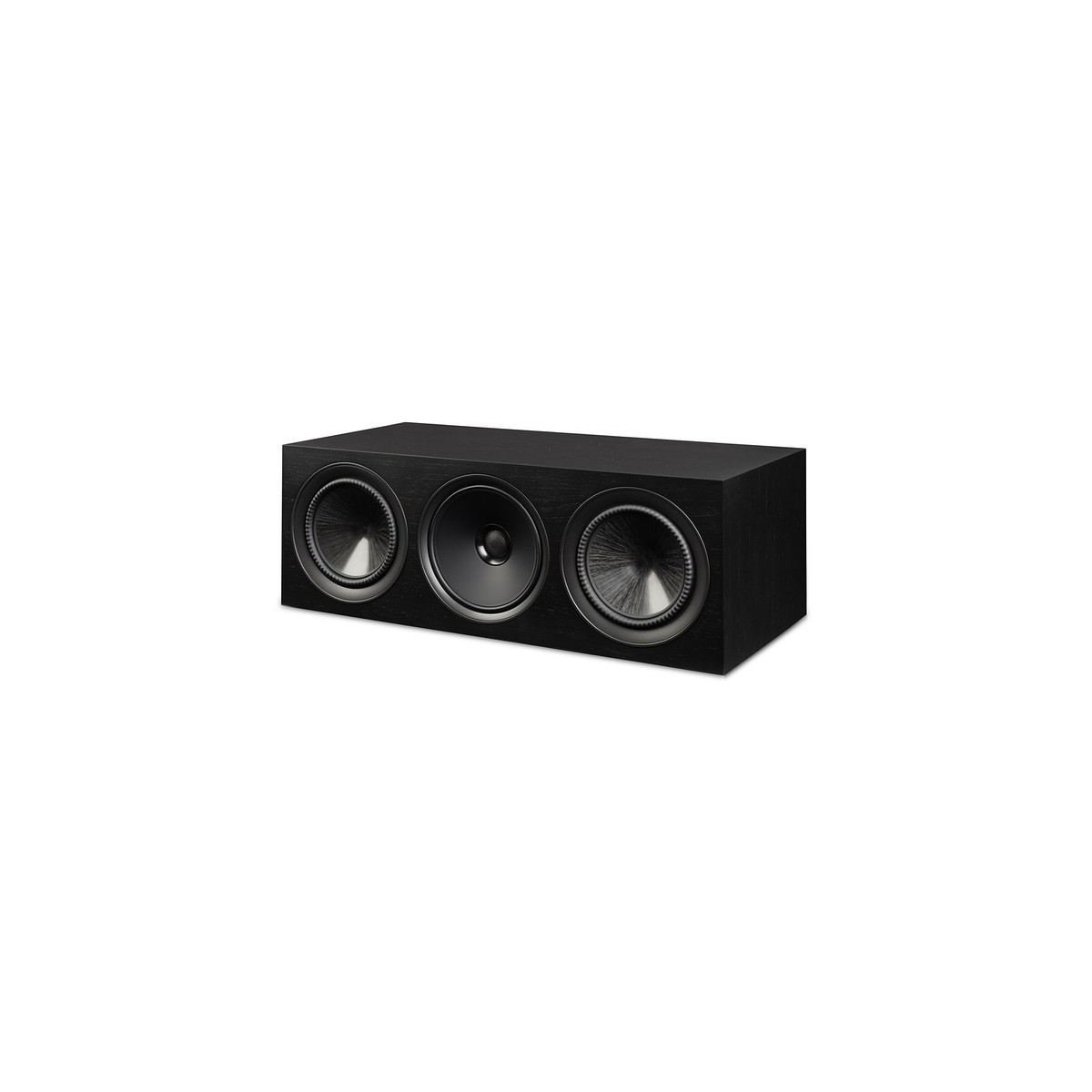

Uitvoering: Black Walnut
Foto van deze uitvoering op aanvraag.
Paradigm Loudspeakers
Premier 520LCR v2
Centerluidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Premier 520LCR v2 |
| Productcategorie | Centerluidsprekers |
| Ontwerp | 4-driver, 3-way sealed LCR speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, en PPA™ |
| Impedantie | Compatible with 8 Ω |
| Wisselfilter | 2nd Order Electro-acoustic at 1.5kHz (tweeter/midrange) 2nd Order Electro-acoustic at 650Hz (midrange/woofer) |
| Frequentierespons op de as | ±3dB from 75Hz - 23kHz |
| Frequentierespons 30° buiten de as | ±3dB from 75Hz - 20kHz |
| Hogetonenunit | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Middentonenunit | Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multilayered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| Lagetonenunit | Twee 6” (152mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, en a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| Gevoeligheid (ruimte / anechoïsch) | 93dB / 90dB |
| Onderste grensfrequentie | 50Hz (DIN) |
| Aanbevolen versterkervermogen | 15-120 Ws |
| Maximaal ingangsvermogen | 80 Ws |
| Afmetingen (H × B × D) (INCLUDES GRILLE). | 8.3” x 23.4” x 12” (21.1 cm x 59.4 cm x 30.5 cm) |
| Gewicht | 31.1 lbs (14.1 kg) each |

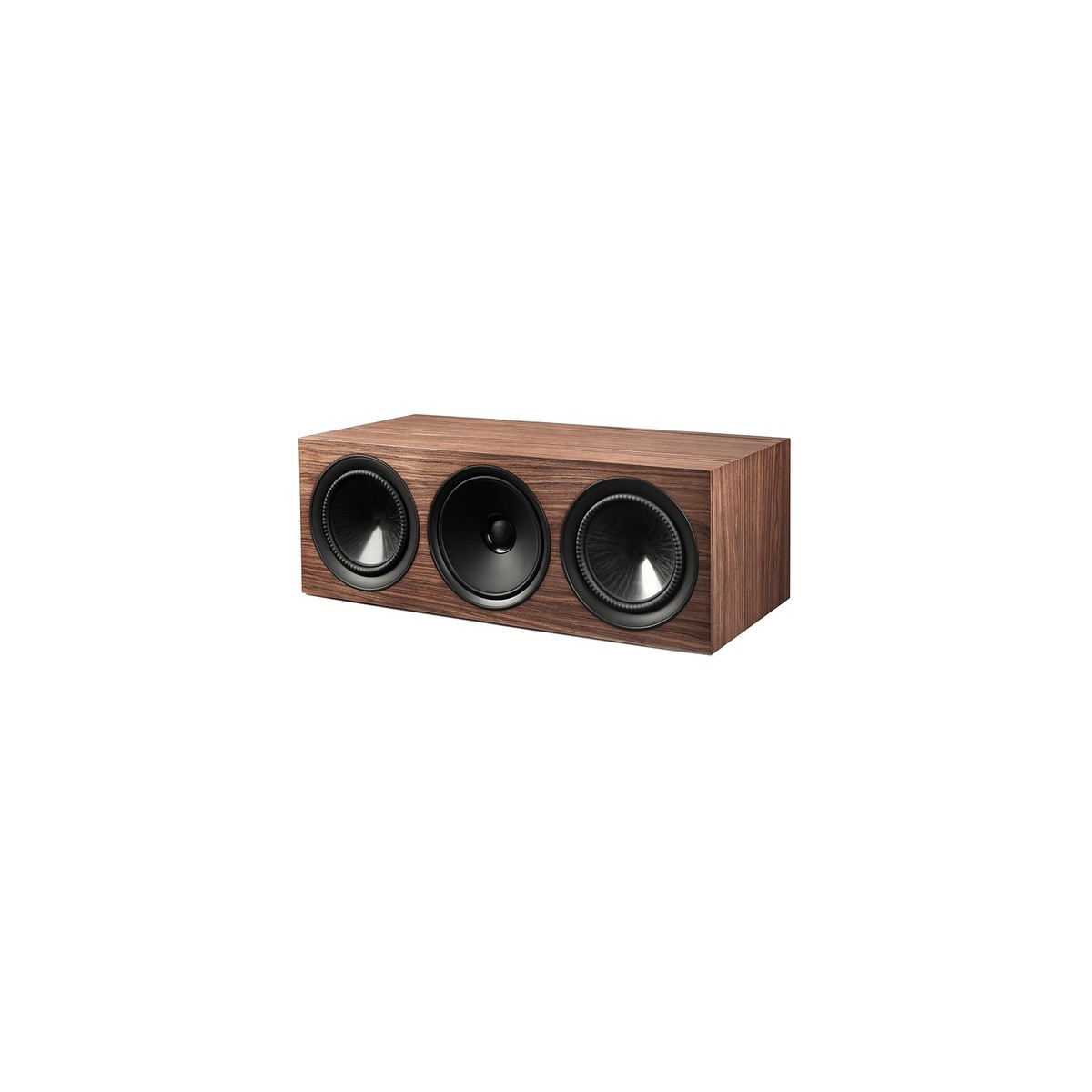

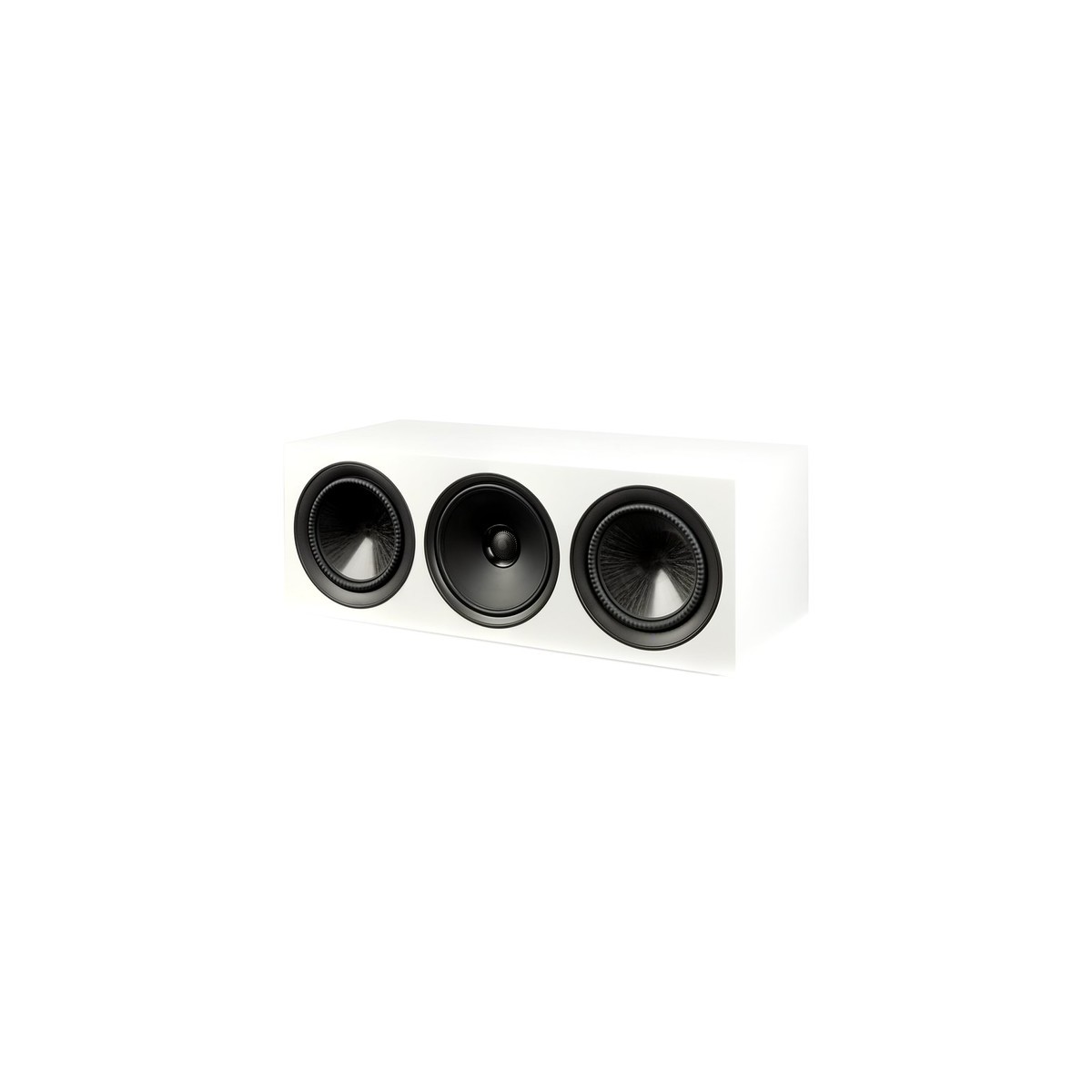

| Afwerkingen | Piano Zwart, Zwart Walnoot, Walnoot, Satin Wit |
