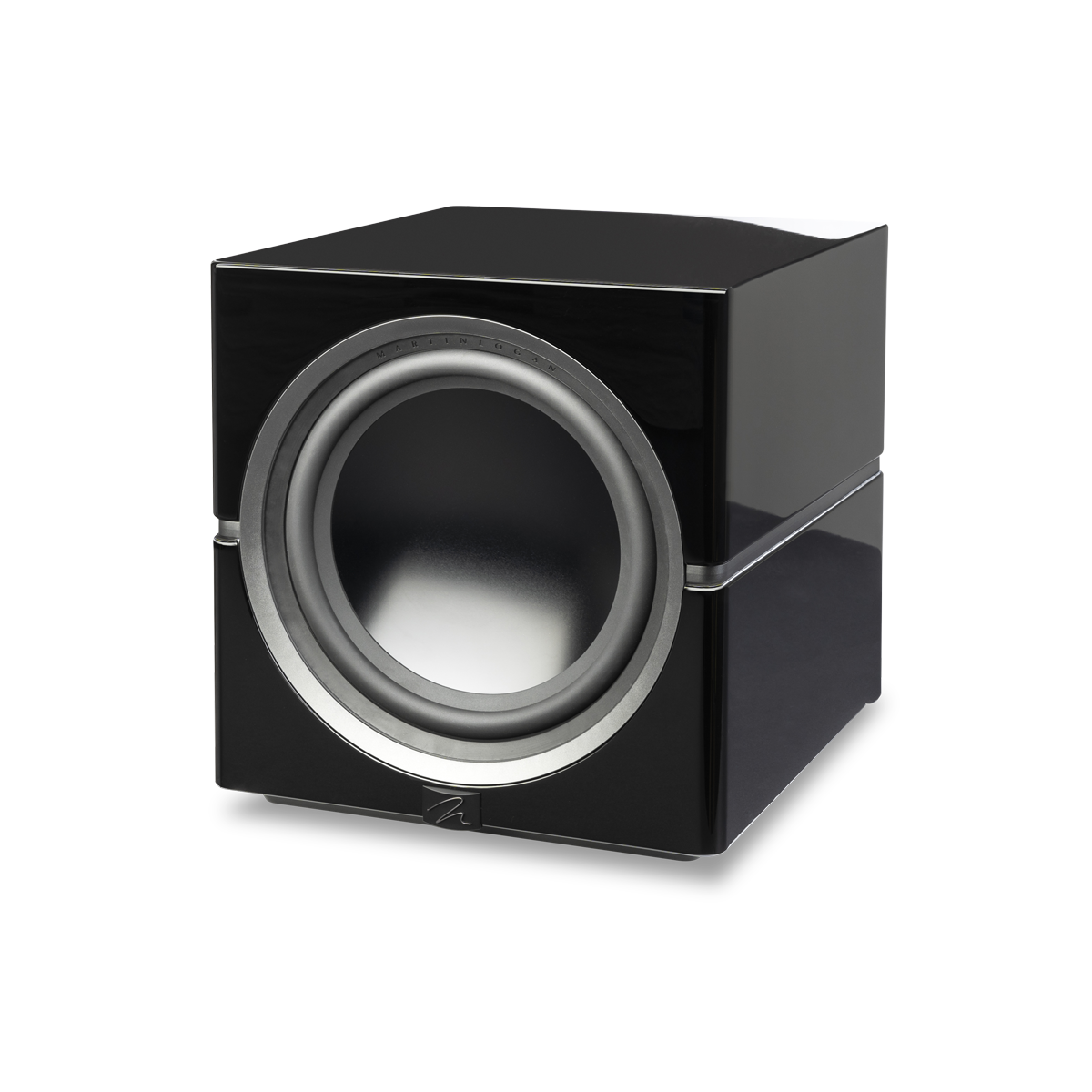

Uitvoering: Gloss Black
MartinLogan
Dynamo 12
Subwoofers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | MartinLogan |
|---|---|
| Model | Dynamo 12 |
| Productcategorie | Subwoofers |
| Frequentiebereik | 22–120 Hz ±3 dB (Anechoic via LFE input) |
| Ingangen | Line Level: Left, Right, en LFE XLR: LFE Speaker Level: Left and Right (requires banana plugs) |
| Stroomverbruik | Max: 800W Standby (Wireless Disabled): 0.5W Standby (Wireless Enabled): <2W *Transmitter and Subwoofer combined |
| Afmetingen (H × B × D) | 16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm) |
| Digitale signaalverwerking | Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
| Lagetonenunit | 12” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket |
| Behuizing | Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle |
| Versterker | Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous) |
| Bediening achterpaneel | Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter) |
| Bediening via Bluetooth | Level: -40 to 12dB (Min-Max) Low-Pass Filter (Frequency): 35–120Hz (1° Increments) Low-Pass Filter (Order): Bypass, Third, Vierth Phase: 0–180° (1° Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Movie, Music, Night 20–30Hz Level: ±10dB Anthem Room Correction (ARC Genesis): On, Off Tone Sweep (120-20Hz): On, Off, Pause (Frequency) |
| Draadloze ingangen | Integrated Wireless Receiver, Wireless Transmitter Included |
| Voeten | Integrated Anti-Vibration Feet (carpet spikes included) |
| Gewicht | 61.5 lbs (27.9 kg) |
| Afwerking | Gloss Zwart |
