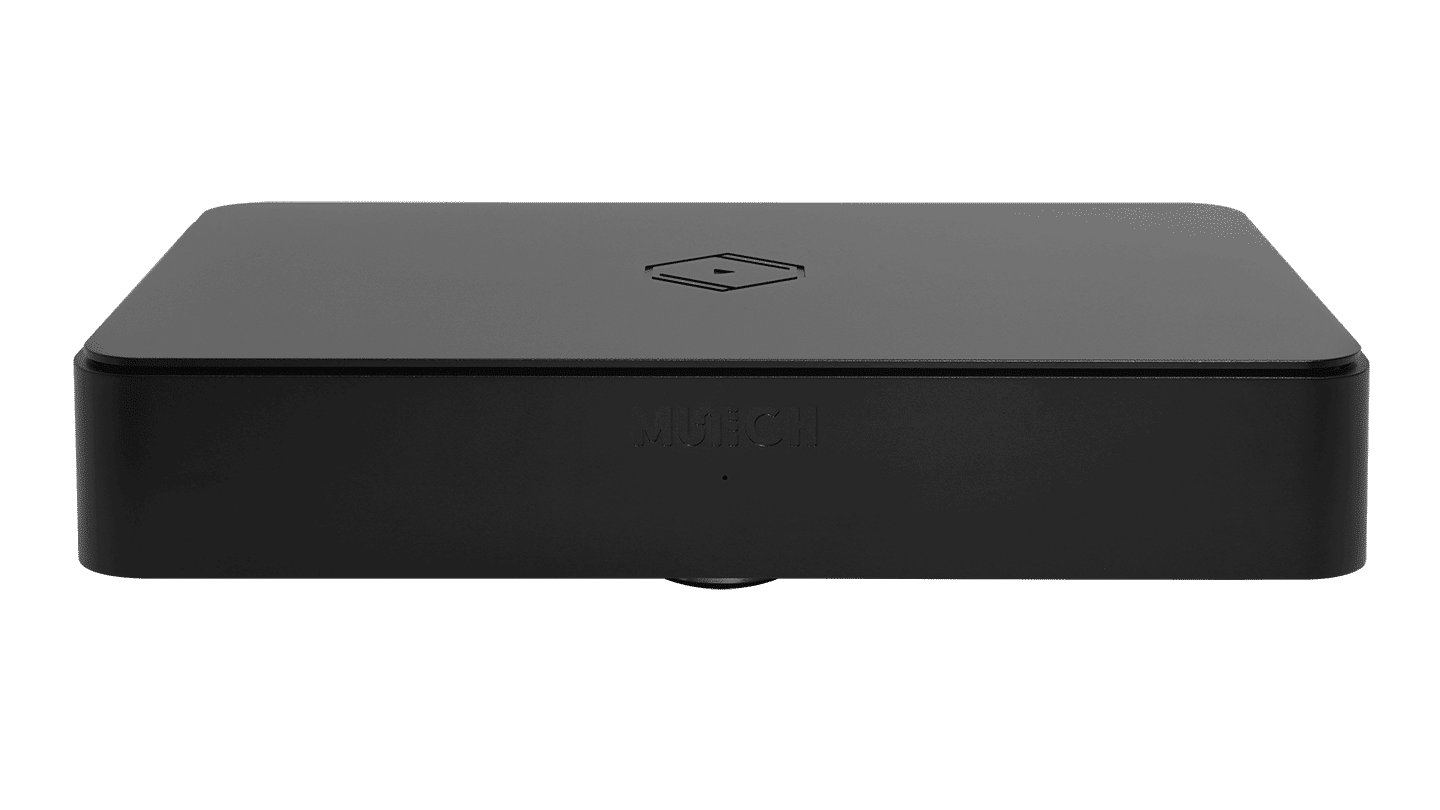

Uitvoering: Zwart
Silent Angel
Munich MU
Streamers & muziekservers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Silent Angel |
|---|---|
| Model | Munich MU |
| Productcategorie | Streamers & muziekservers |
| Digitale uitgangen | AES/EBU port x 1 I2S port x 1* Coaxial port x 1 - Supports tot PCM 384KHz and DSD 5.6M (DSD128) * I2S output signal is not compatible with Holo Audio's DAC |

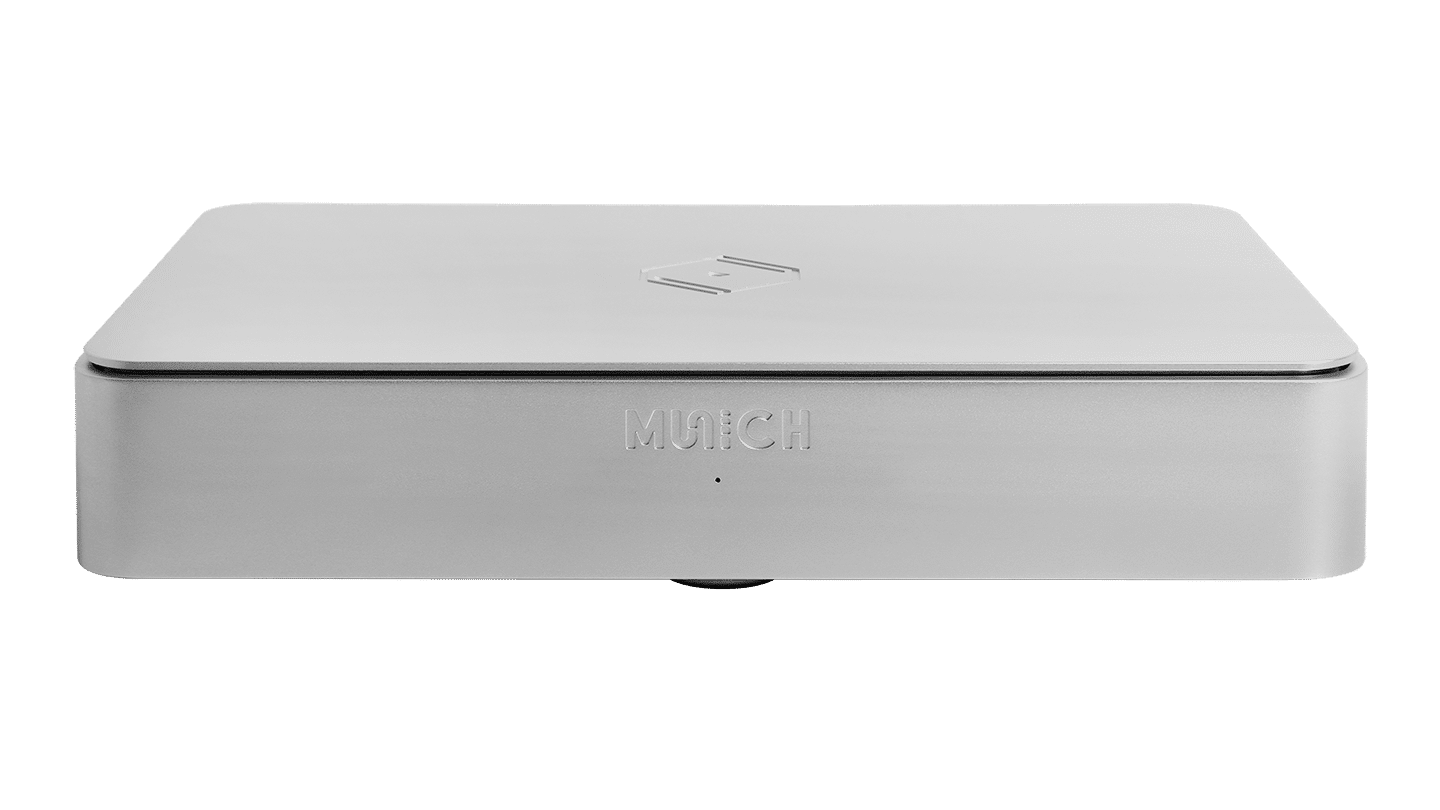

| Beschikbare kleuren | Zwart, Zilver |
| Ethernet | 1 GbE RJ45 x 1 |
| Led-indicatie | Red, green, en blue lights flash in sequence > System booting Blue light remains steady > Startup process completed Blue light stays steady > Standby mode Red light blinks > Mute mode Green light blinks > PCM output format Blue light blinks > DSD output format |
| USB-audio | USB Audio port x 1 - Supports tot PCM 768KHz and DSD 11.2M (DSD256) |
| Processor | Dual-core Cortex-A72, frequency 1.8GHz + Quad-core Cortex-A53, frequency 1.4GHz |
| Werkgeheugen | Low-Noise 4GB |
| Materiaal behuizing | Aluminum alloy material sandblasted anodized appearance, Double-layer casing isolation design. |
| Afmetingen | 360(W)*73(H)*220(D)mm 14.18(W)*2.9(H)*8.67(D)inch |
| Gewicht | 4.65KG (10.25 lb) |
