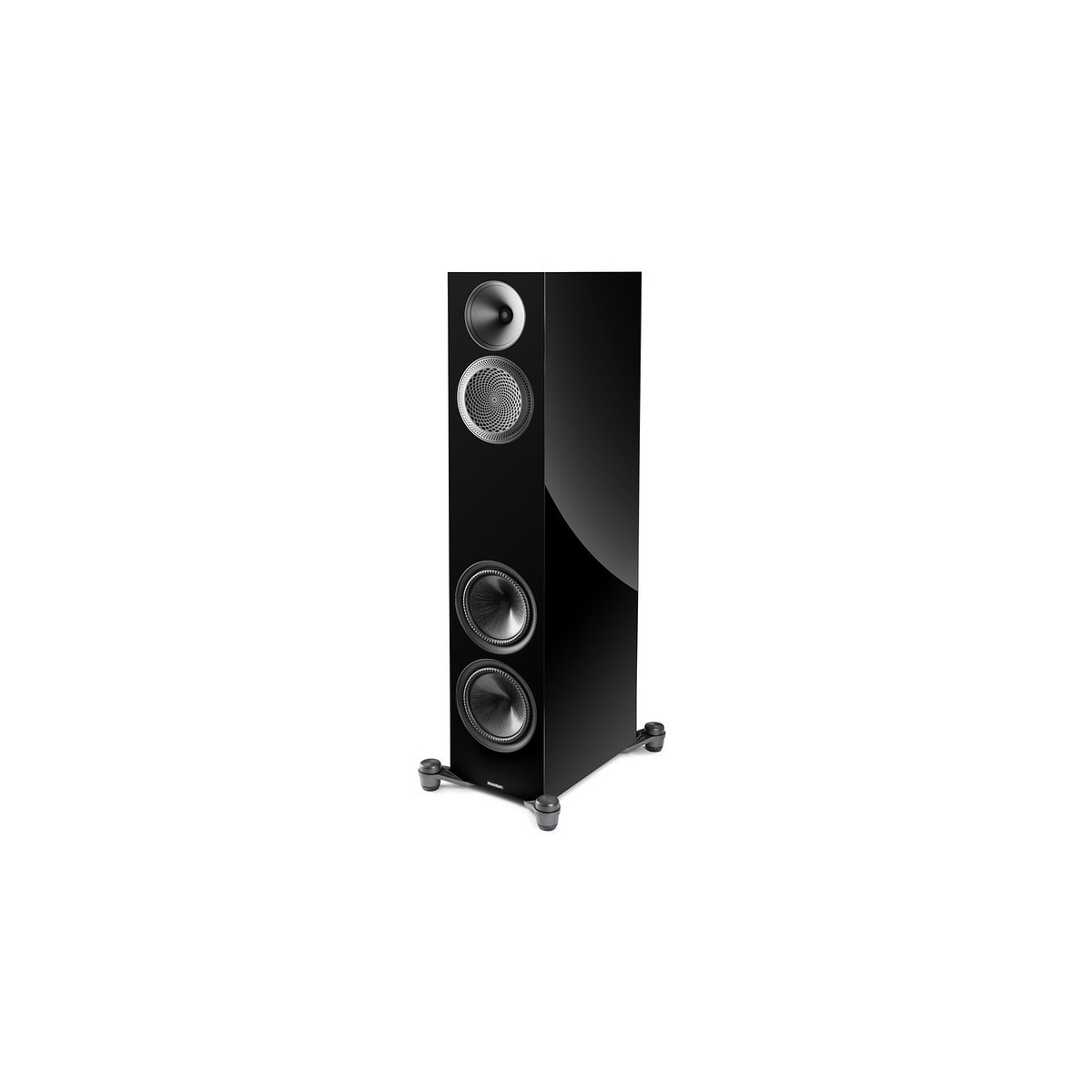

Uitvoering: Piano Black
Paradigm Loudspeakers

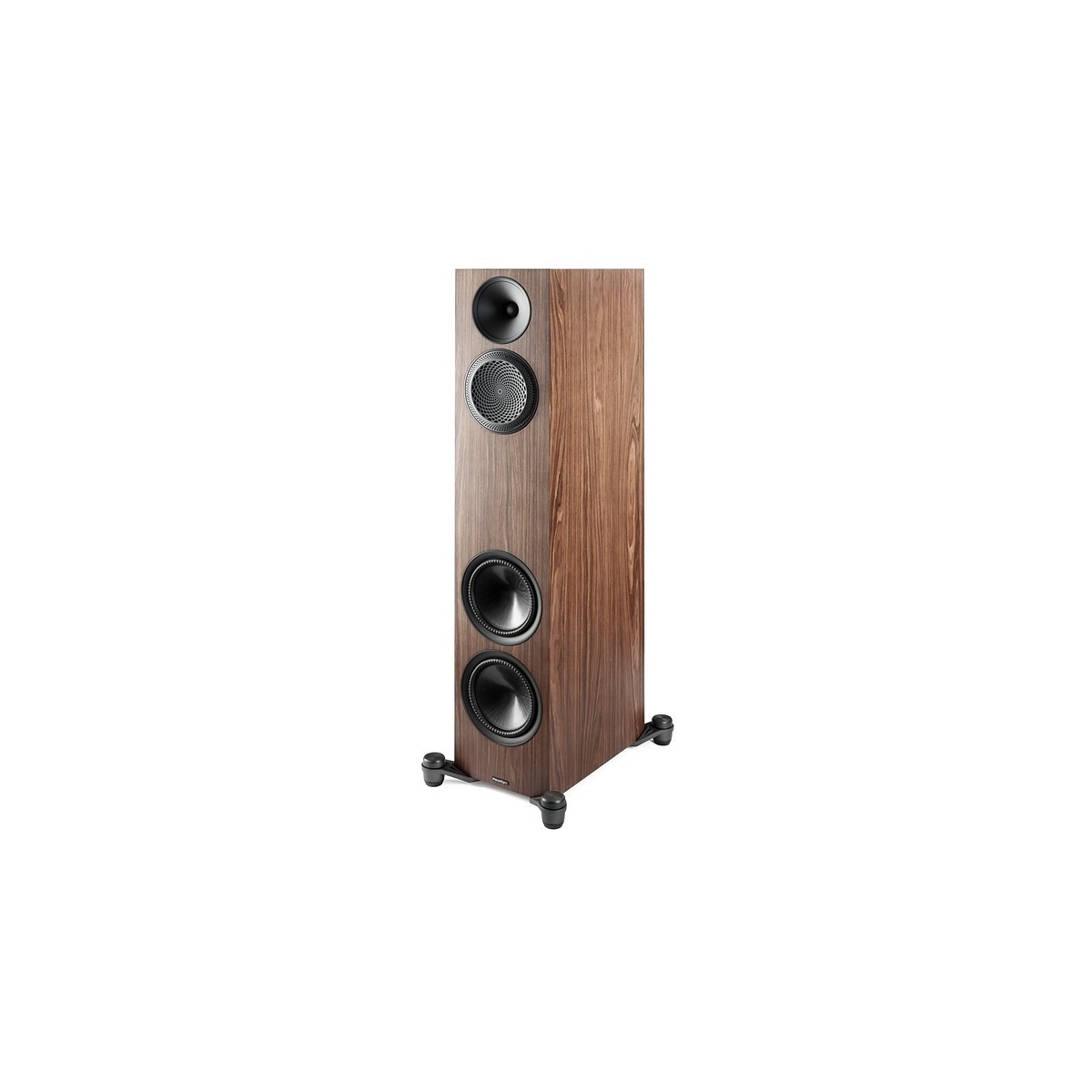

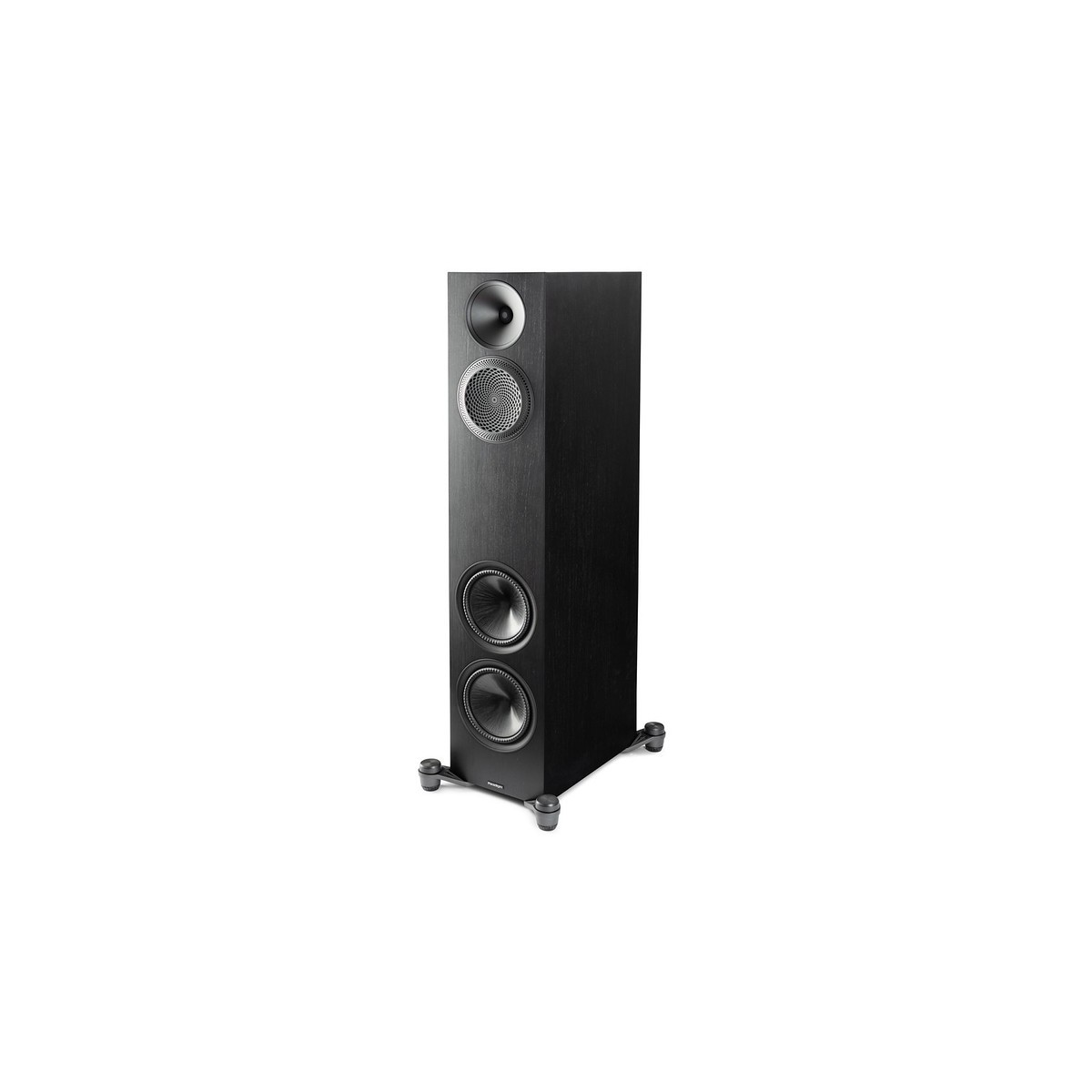

Premier 820F v2
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Premier 820F v2 |
| Productcategorie | Vloerstaande luidsprekers |
| Ontwerp | 4-driver, 3-way ported floorstanding speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, en PPA™ |
| Impedantie | Compatible with 8 Ω |
| Wisselfilter | 2nd Order Electro-acoustic at 1.8kHz (tweeter/midrange) 2nd Order Electro-acoustic at 450Hz (midrange/woofer) |
| Frequentierespons op de as | ±3dB from 52Hz - 23kHz |
| Frequentierespons 30° buiten de as | ±3dB from 52Hz - 20kHz |
| Hogetonenunit | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Middentonenunit | 6” (152mm) AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, en a 2” hightemp multi-layered voice coil with ventilated Apical™ former |
| Lagetonenunit | Twee 7” (177mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, en a 1” high-temp multi-layered voice coil with ventilated Apical™ former |
| Gevoeligheid (ruimte / anechoïsch) | 93dB / 90dB |
| Onderste grensfrequentie | 21Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 250 Ws |
| Maximaal ingangsvermogen | 180 Ws |
| Afmetingen (H × B × D) (INCLUDES GRILLE). | 43.4” x 13.1” x 18.6” (110.2 cm x 33.3 cm x 47.2 cm) |
| Gewicht | 65 lbs (29.5 kg) each |
| Afwerkingen | Piano Zwart, Zwart Walnoot, Walnoot |
