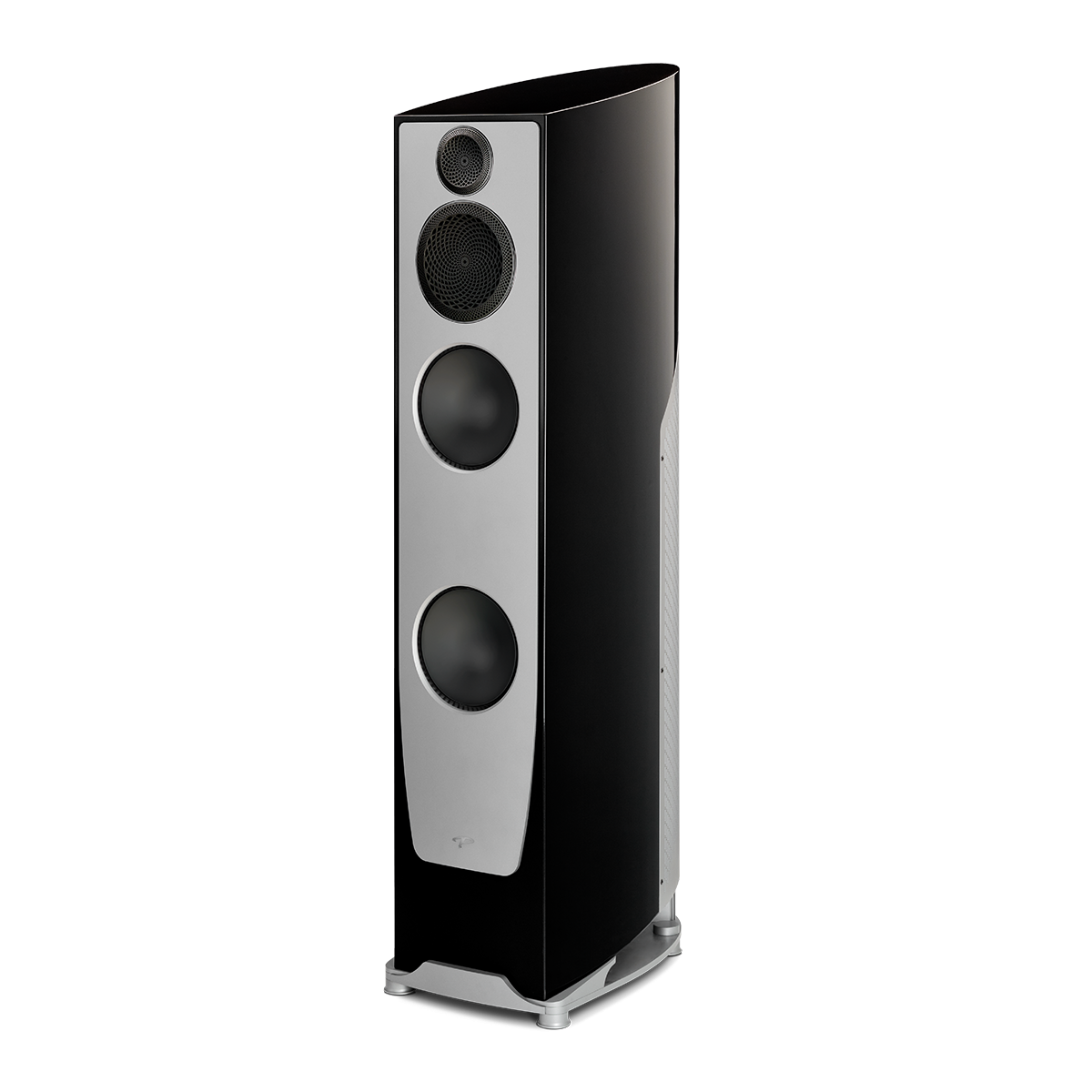

Uitvoering: Vanta Black
Paradigm Loudspeakers
Persona 9H
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Persona 9H |
| Productcategorie | Vloerstaande luidsprekers |
| Ontwerp | 6-driver, 3-1/2 way hybrid floorstanding with active bass acoustic suspension |
| Impedantie | Compatible with 8 Ω |
| Afmetingen (H × B × D) | 51.75" × 11.875 × 20.5" (132cm × 30 × 52cm) |
| Wisselfilter | 3rd order electro-acoustic at 2.4 kHz (tweeter/mid), 3rd order @ 400 Hz (mid/front bass), 2nd order @ 200 Hz (rear bass) |
| Versterker | Power measurements underway to ensure compliance with new FTC regulations |
| Ruimtecorrectie | Anthem Room Correction - ARC™, met included calibrated microphone |
| Frequentierespons op de as | ±2dB from 19 Hz - 45 kHz |
| Frequentierespons 30° buiten de as | ±2dB from 19 Hz - 20 kHz |
| Hogetonenunit | 1" (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly |
| Middentonenunit | 7" (178mm) Truextent® Beryllium driver with Inverse Differential Drive Neodymium motor, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp voice coil |
| Lagetonenunit | Vier 8-1/2" (215 mm) ultra-high-excursion X-PAL™ drivers with Differential Drive motor, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp dual voice coil |
| Gevoeligheid (ruimte / anechoïsch) | 96 dB / 93 dB |
| Onderste grensfrequentie | 15 Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 500 W |
| Maximaal ingangsvermogen | 400 W |
| Gewicht | 190 lbs. (86 kg) |
| Afwerkingen | High Gloss: Vanta Zwart, Harmony Wit. Metallic Gloss: Aria Blue, Sonic Zilver |
