Uitvoering: Piano Black
Paradigm Loudspeakers

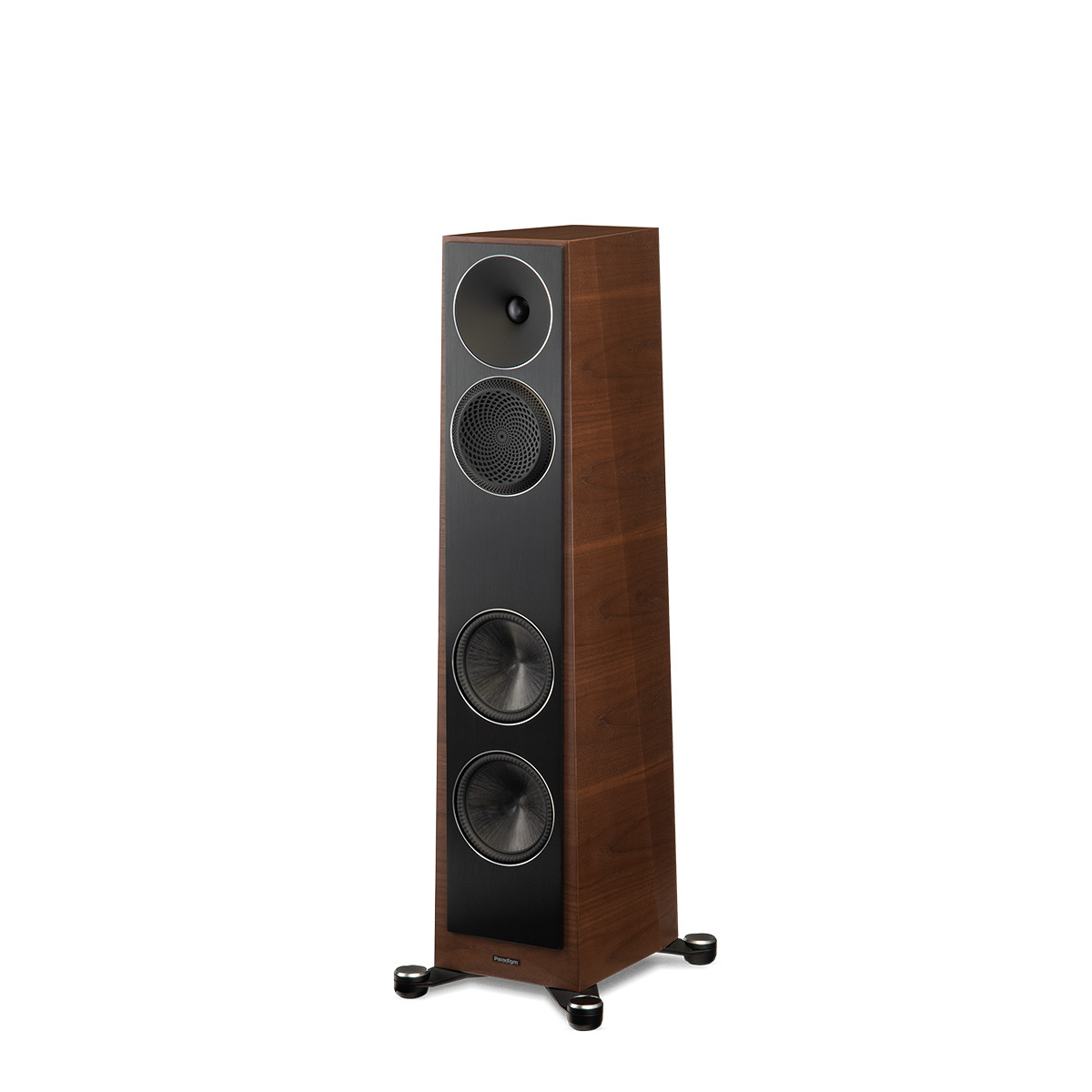

Founder 80F
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Founder 80F |
| Productcategorie | Vloerstaande luidsprekers |
| Ontwerp | 4-driver, 2.5 way floorstanding, ported enclosure |
| Impedantie | Compatible with 8 Ω |
| Afmetingen (H × B × D) | 38.2” x 11.7” x 14” (97.1cm x 29.8cm x 35.6cm) |
| Wisselfilter | 2nd order electro-acoustic at 1.8 kHz (tweeter), 2nd order @ 500 Hz (bass) |
| Frequentierespons op de as | ±2dB from 50 Hz - 23 kHz |
| Frequentierespons 30° buiten de as | ±2dB from 50 Hz - 20 kHz |
| Hogetonenunit | 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Lagetonenunit | Twee 6" (152mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, en a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| Midden-/lagetonenunit | 6” (152mm) Ultra-High-Excursion AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCKMOUNT™ Isolation, en a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| Gevoeligheid (ruimte / anechoïsch) | 93 dB / 90 dB |
| Onderste grensfrequentie | 28 Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 220 W |
| Maximaal ingangsvermogen | 180 W |
| Gewicht | 52 lbs (23.6 kg) each |
| Afwerkingen | Piano Zwart, Zwart Walnoot, Midnight Cherry, Walnoot |
