Uitvoering: Piano Black
Paradigm Loudspeakers
Founder 120H
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Founder 120H |
| Productcategorie | Vloerstaande luidsprekers |
| Ontwerp | 5-driver, 3 way hybrid floostanding with active bass, ported enclosure |
| Impedantie | Compatible with 8 Ω |
| Afmetingen (H × B × D) | 45.4” x 13.9” x 17.4” (115.3cm x 35.4cm x 44.1cm) |
| Wisselfilter | 2nd order at 2.4 kHz (tweeter), 2nd order digital/analog @ 300 Hz (bass) |
| Versterker | Power measurements underway to ensure compliance with new FTC regulations |
| Frequentierespons op de as | ±2dB from 22 Hz - 23 kHz |
| Frequentierespons 30° buiten de as | ±2dB from 22 Hz - 20 kHz |
| Hogetonenunit | 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Middentonenunit | 6” (152mm) AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, SHOCKMOUNT™ Isolation Mounting System, en a 2” high-temp multi-layered voice coil with ventilated Apical™ former |
| Lagetonenunit | Drie 8" (215mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, en a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| Gevoeligheid (ruimte / anechoïsch) | 95 dB / 92 dB |
| Onderste grensfrequentie | * 18 Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 400 W |
| Maximaal ingangsvermogen | 300 W |
| Gewicht | 92 lbs (41.7 kg) each |

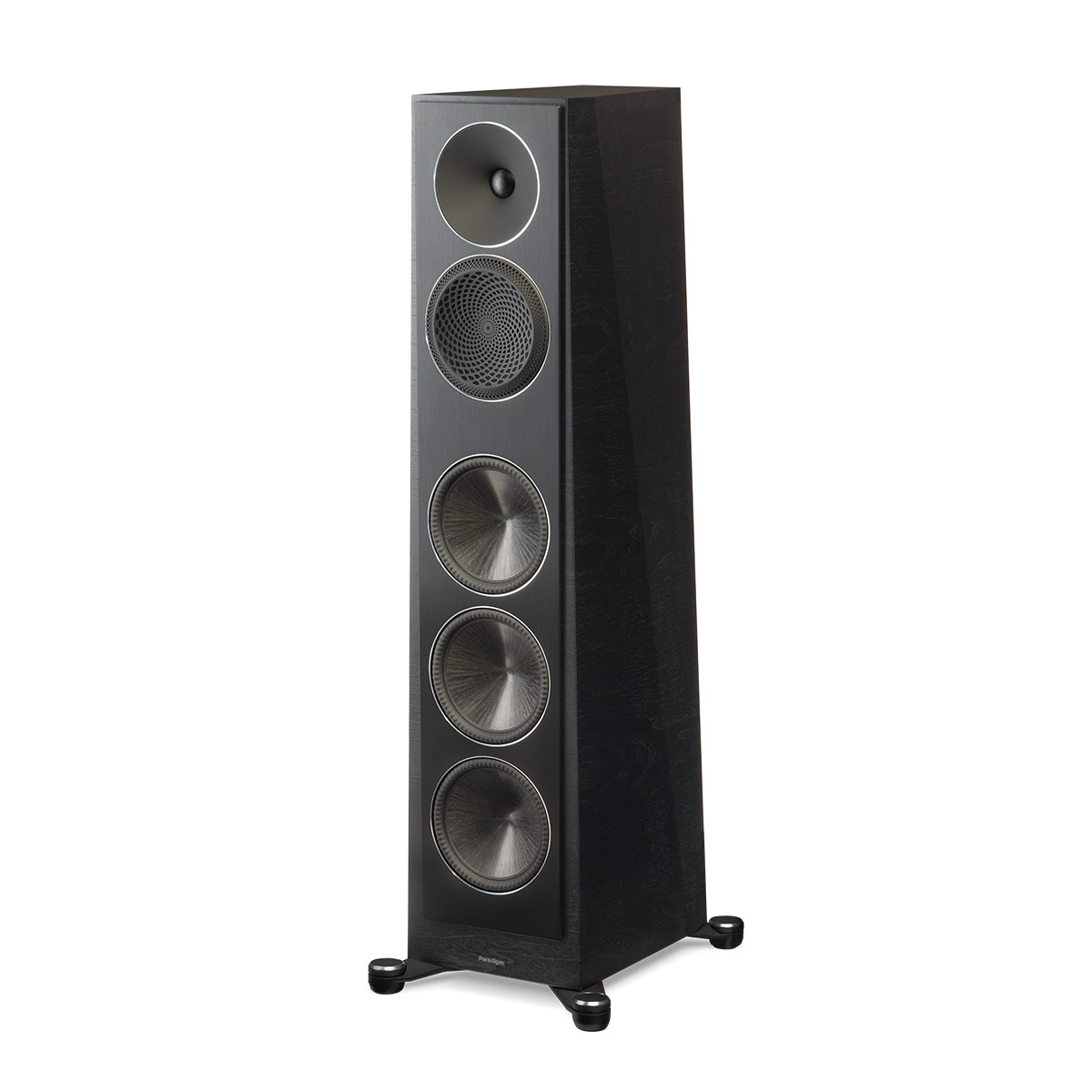

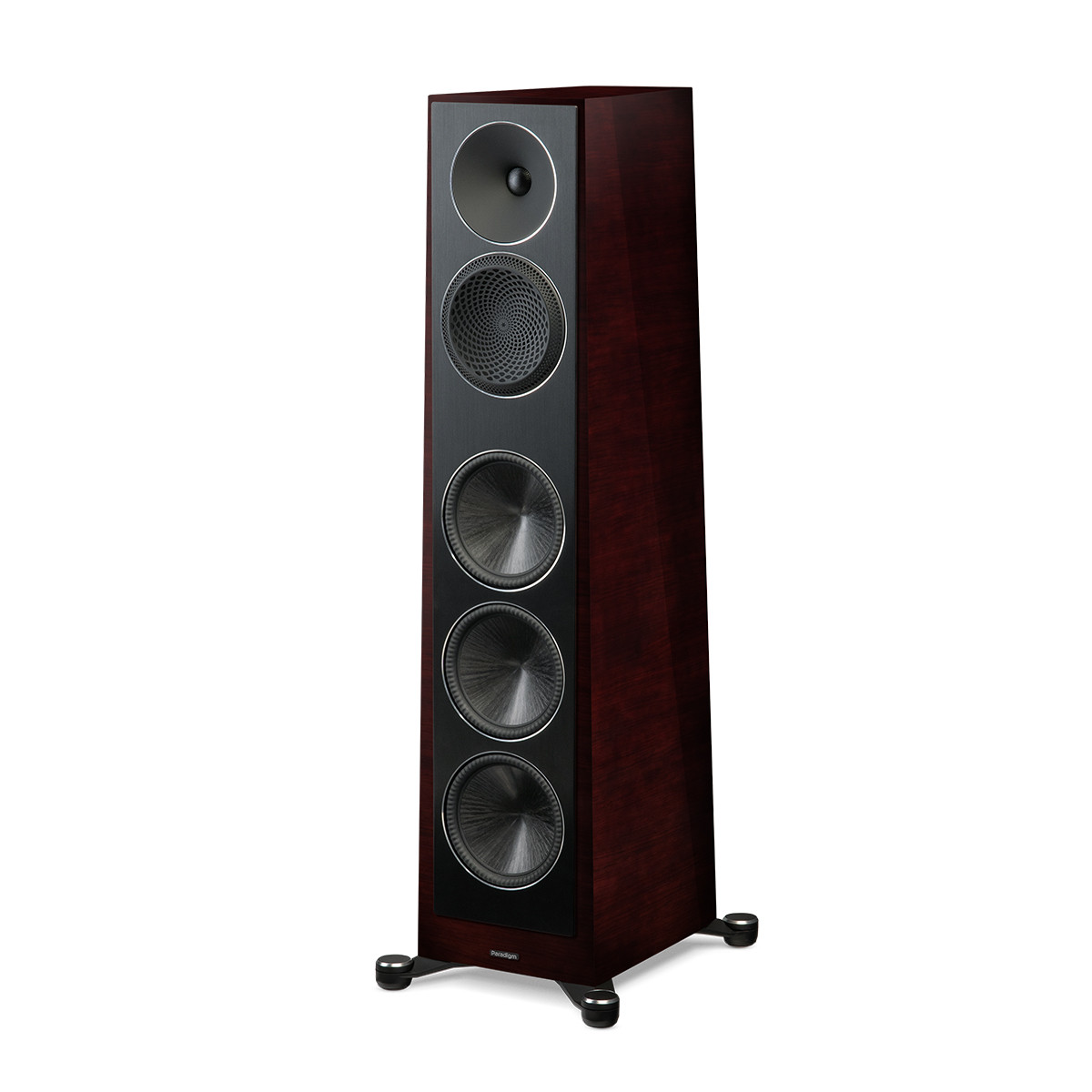

| Afwerkingen | Piano Zwart, Zwart Walnoot, Midnight Cherry, Walnoot |
