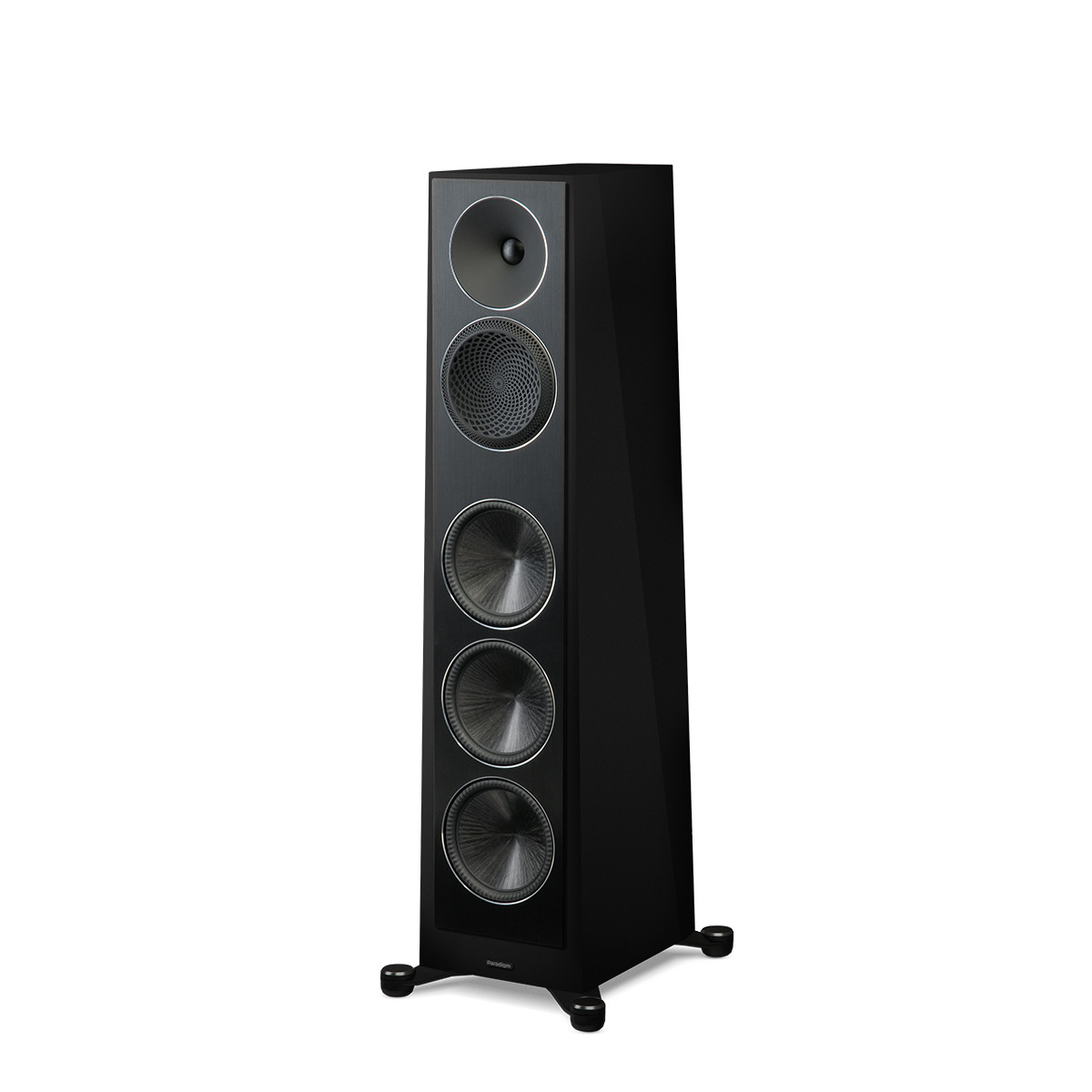

Uitvoering: Piano Black
Paradigm Loudspeakers

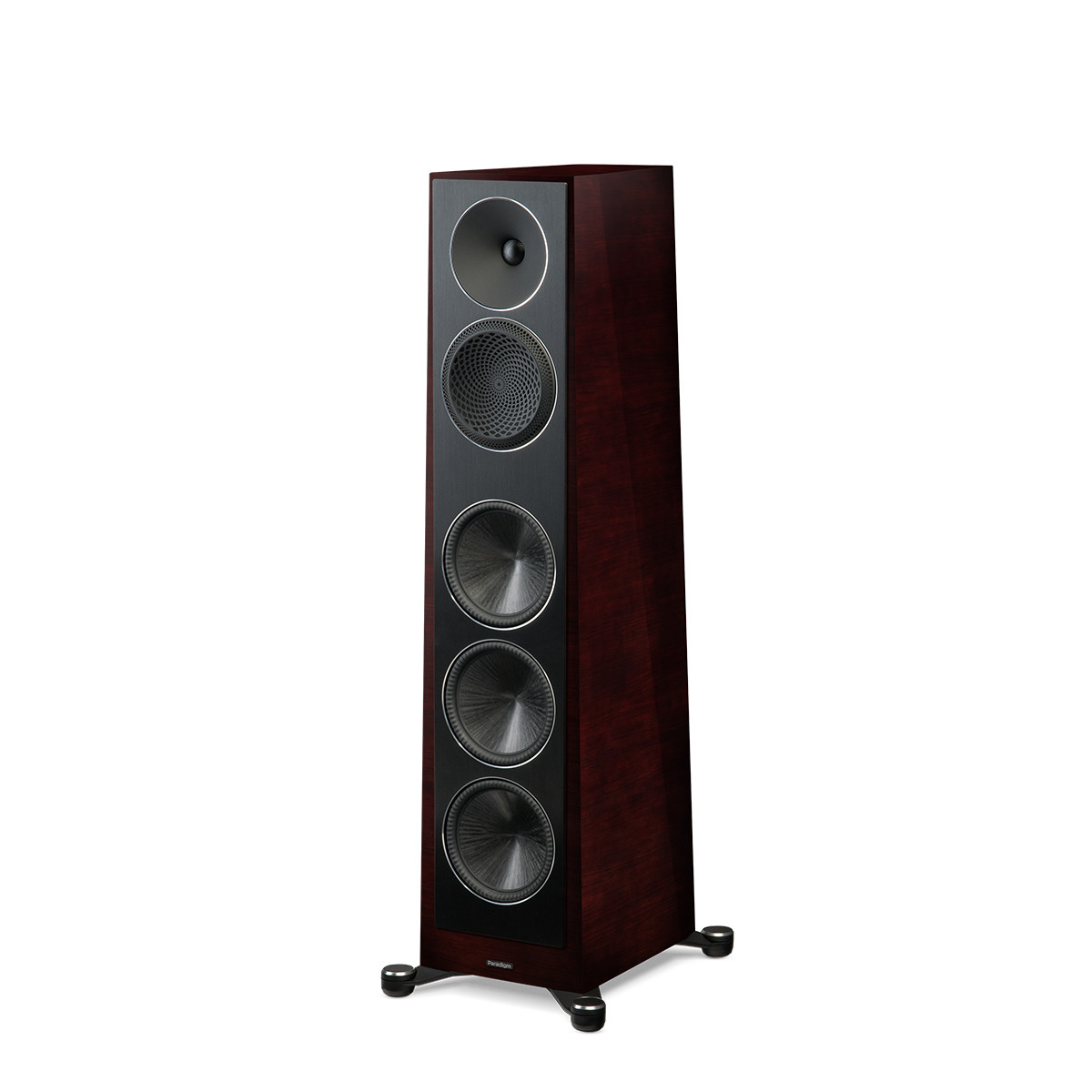

Founder 100F
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Paradigm Loudspeakers |
|---|---|
| Model | Founder 100F |
| Productcategorie | Vloerstaande luidsprekers |
| Ontwerp | 5-driver, 3 way floorstanding, ported enclosure |
| Impedantie | Compatible with 8 Ω |
| Afmetingen (H × B × D) | 41.9” x 12.9” x 16.1” (106.5cm x 32.8cm x 40.9cm) |
| Wisselfilter | 2nd order electro-acoustic at 2.1 kHz (tweeter), 2nd order @ 500 Hz (bass) |
| Frequentierespons op de as | ±2dB from 42 Hz - 23 kHz |
| Frequentierespons 30° buiten de as | ±2dB from 42 Hz - 20 kHz |
| Hogetonenunit | 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) en Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Middentonenunit | 6” (152mm) AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, SHOCKMOUNT™ Isolation Mounting System, en a 2” high-temp multi-layered voice coil with ventilated Apical™ former |
| Lagetonenunit | Drie 7" (177mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) met Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, en a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former |
| Gevoeligheid (ruimte / anechoïsch) | 93 dB / 90 dB |
| Onderste grensfrequentie | 26 Hz (DIN) |
| Aanbevolen versterkervermogen | 15 - 350 W |
| Maximaal ingangsvermogen | 250 W |
| Gewicht | 72 lbs (32.7 kg) each |
| Afwerkingen | Piano Zwart, Zwart Walnoot, Midnight Cherry, Walnoot |
