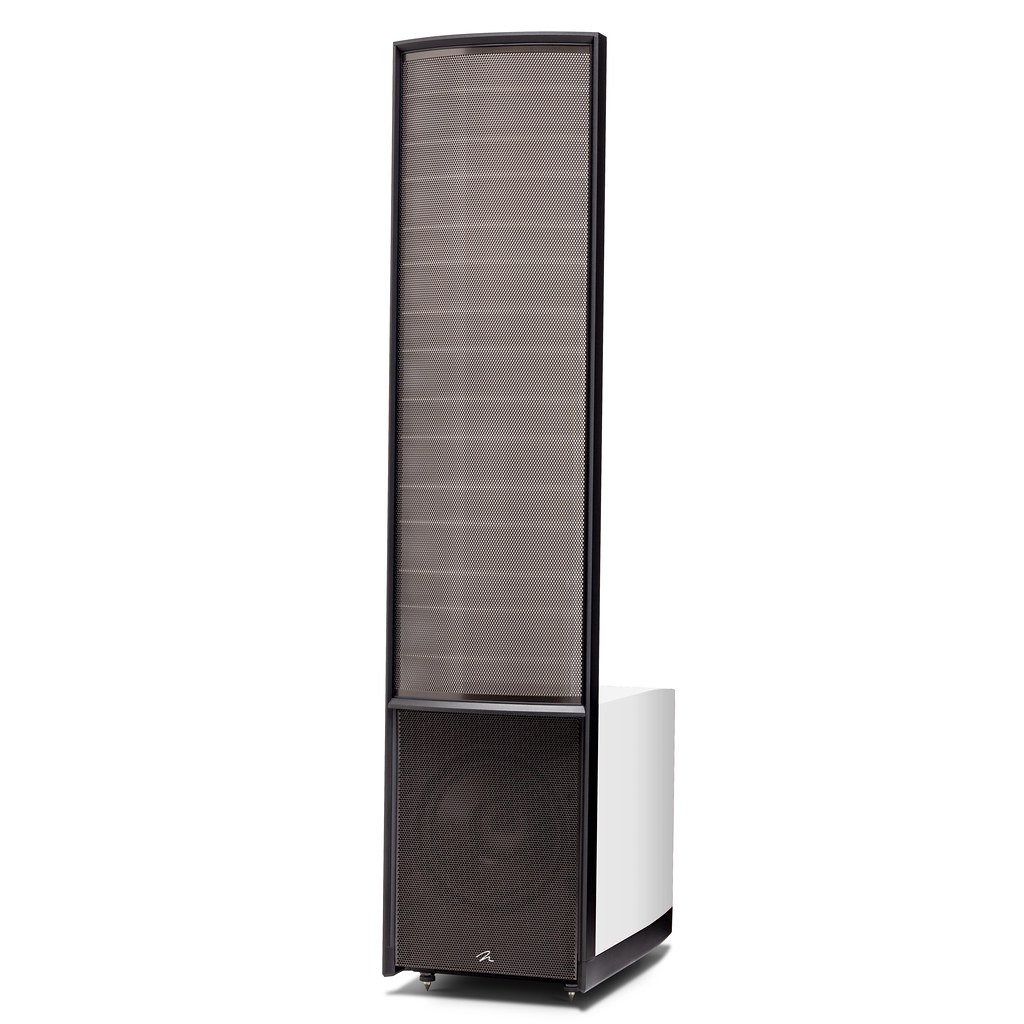

Uitvoering: Gloss White
Foto van deze uitvoering op aanvraag.
MartinLogan
Renaissance ESL 15A
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | MartinLogan |
|---|---|
| Model | Renaissance ESL 15A |
| Productcategorie | Vloerstaande luidsprekers |
| Frequentiebereik | 22–21,000 Hz ±3dB |
| Impedantie | 4 Ω, 0.5 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Gevoeligheid | 92 dB/2.83 volts/meter |
| Luidsprekerbezetting | Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier). |
| Ingangen | AC Power, RJ45 (for ARC), mini USB (for ARC) |
| Stroomverbruik | Idle: < 0.5W/channel Max: 900W/channel |
| Aanbevolen versterkervermogen | 20—700 W per kanaal |
| Horizontale afstraling | 30° |
| Verticale afstraling | 46" (116.9cm) line source |
| Scheidingsfrequentie | 300Hz |
| Hogetonenunit | XStat™ CLS™ electrostatic transducer. » Panel Dimensions : 46" x 15" (117 x 38cm). » Radiating Area : 690 in² (4,446 cm² ) |
| Lagetonenunit | Twee 12” (30.5 cm) PoweredForce Forward™ woofers with cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format. |
| Versterker | Woofer: 2 x 500 W/channel (4 Ω), 2 x 1,000 W peak |
| Ruimtecorrectie (Bass Section) | Anthem Room Correction (ARC™) ready (Sold Separately) |
| Audioregelingen | Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db Light: On, Dim, Off ARC™ Room EQ: On, Off |
| Afmetingen | 69.8" x 15.75" x 28.9 " (177.3cm x 40cm x 63.3cm) |
| Gewicht | 140 lbs. (63.5 kg) |
