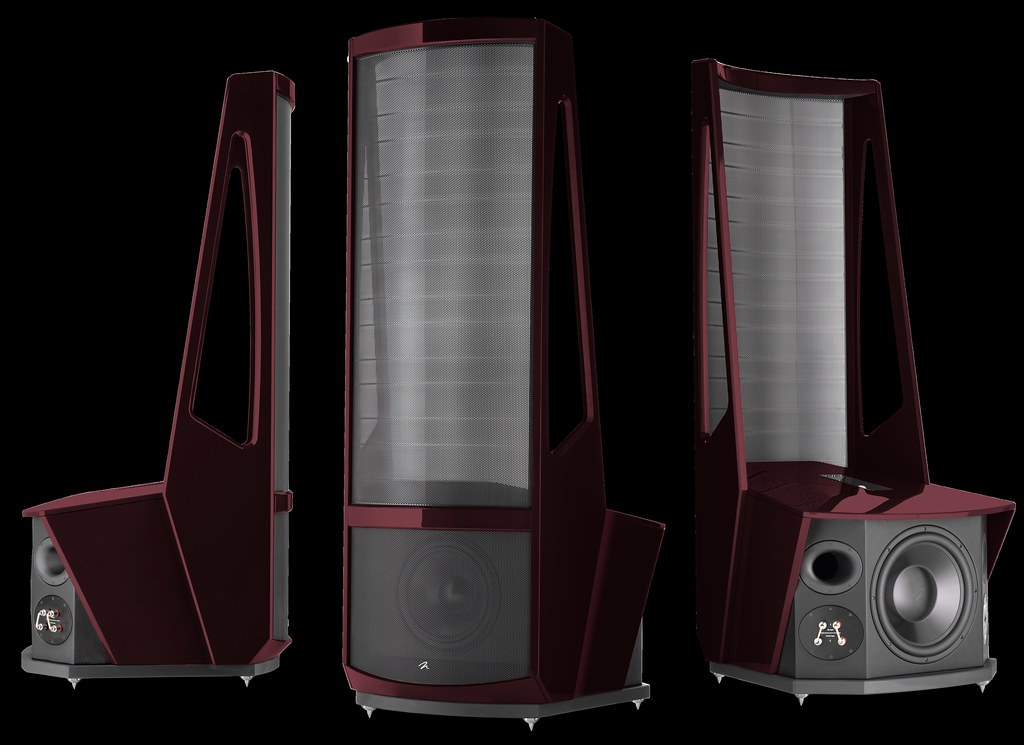

Uitvoering: Rosso Fuoco
MartinLogan
Neolith
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | MartinLogan |
|---|---|
| Model | Neolith |
| Productcategorie | Vloerstaande luidsprekers |
| Frequentiebereik | 23–22,000 Hz ±3dB |
| Impedantie | Nominal: 4 Ω, 0.43 Ω @ 20 kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Gevoeligheid | 90 dB/2.83 volts/meter |
| Luidsprekerbezetting | High-Pass Crossover: 1% resistors mounted to heat sinks, polypropylene capacitors, air core inductors, dual toroidal audio transformers to drive electrostatic element Low-Pass Crossover: 1% resistors mounted to heat sinks, toroidal inductors, supports user options to modify sound output via jumpers. |
| Ingangen | WBT-0705Ag nextgen™ 5-way bi-wire binding posts feature a filigree signal conductor made from fine silver for high conductivity. Fully insulated for CE and IEC conformity providing shock hazard protection. Free from eddy current effects. Max constant current 30 A, admissible peak current 200 A. Outer metal cap with palladium plated finish. |
| Stroomverbruik | Standby: 1W each Max: 15W each |
| Aanbevolen versterkervermogen | 20—1300 W per kanaal |
| Horizontale afstraling | 30° |
| Verticale afstraling | 48" (122 cm) line source |
| Scheidingsfrequentie | 60, 250–400 Hz |
| Hogetonenunit | XStat™ CLS™ electrostatic transducer » Panel Dimensions 48" x 22" (122 x 56cm) » Radiating Area 1056 in² (6,832 cm² ) |
| Behuizing | Phenolic Resin Polymer: Dense substrate with superb mechanical strength to minimize cabinet vibrations caused by woofer cone motion counter forces to provide an ideal baffle for the electrostatic panel and woofers. |
| Audioregelingen | Bass Control : 0dB, -4dB, -8dB Distance Control : 3 meters (or less), 4 meters, 5 meters (or greater) |
| Afmetingen | 74.8" x 30.3" x 34.2 " (189.9cm x 76.9cm x 87cm) |
| Gewicht | 385 lbs. (175 kg) |
