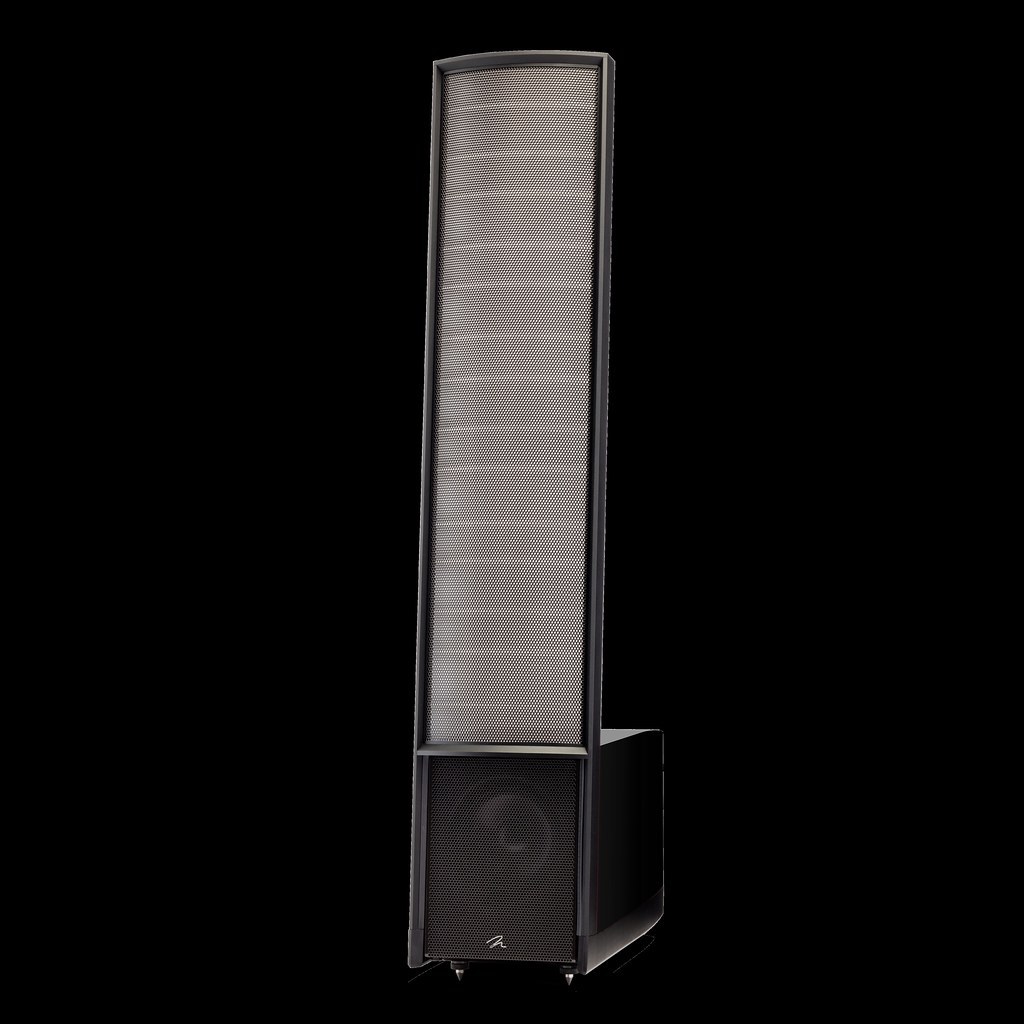

Uitvoering: Gloss Black
Foto van deze uitvoering op aanvraag.
MartinLogan
Impression ESL 11A
Vloerstaande luidsprekers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | MartinLogan |
|---|---|
| Model | Impression ESL 11A |
| Productcategorie | Vloerstaande luidsprekers |
| Frequentiebereik | 29–23,000 Hz ±3dB |
| Impedantie | 4 Ω, 0.6 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Gevoeligheid | 91 dB/2.83 volts/meter |
| Luidsprekerbezetting | Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier). |
| Ingangen | AC Power, RJ45 (for ARC), mini USB (for ARC) |
| Stroomverbruik | Idle: < 1W/channel Max: 500W/channel |
| Aanbevolen versterkervermogen | 20—550 W per kanaal |
| Horizontale afstraling | 30° |
| Verticale afstraling | 44" (112cm) line source |
| Scheidingsfrequentie | 300Hz |
| Hogetonenunit | XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 11" (112 x 28cm) » Radiating Area: 484 in² (3,136 cm² ) |
| Lagetonenunit | Twee 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format. |
| Versterker | Woofer: 2 x 275 W/channel (4 Ω), 2 x 550 W peak |
| Ruimtecorrectie (Bass Section) | Anthem Room Correction (ARC™) ready (Sold Separately) |
| Audioregelingen | Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db ARC™ Room EQ: On, Off |
| Afmetingen | 60.75" x 11.9" x 27.4 " (154.3cm x 30.2cm x 69.6cm) |
| Gewicht | 90 lbs. (40.9 kg) |
