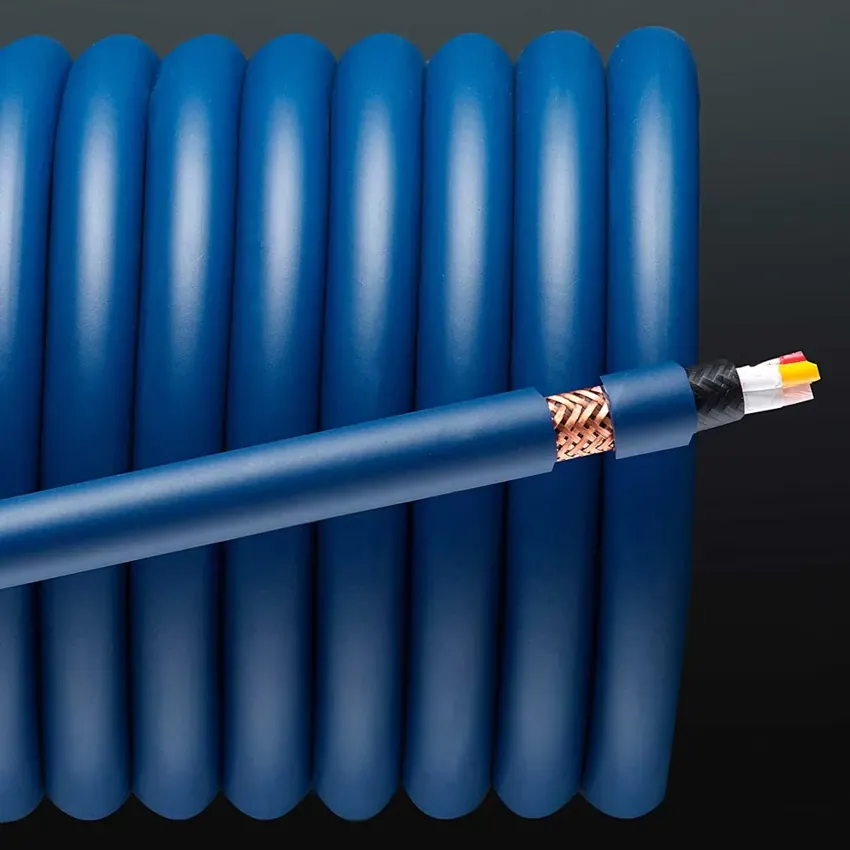

Furutech
FP-3TS20
Voedingskabels
Vraag advies of een luisterafspraakDownload specificaties (PDF)Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Furutech |
|---|---|
| Model | FP-3TS20 |
| Productcategorie | Voedingskabels |
| Conductor | α (Alpha)-OCC Conductor(56/0.18mm（central）+ 29/0.18mm（outside） (14 AWG) / (2.16 sq.mm) |
| Insulation | PE(Red、Natural、Yellow) Red=Live、Yellow=Neutral、Clear=Earth. |
| Twisting | 3 Cores Twisted Together |
| Shield | 0.12mm α (Alpha) Conductor wire Braid |
| Sheath | Flexible PVC (Dark Blue) |
| Max. Conductor Resistance | 0.008Ω/ M |
| Overall Diameter | 14.3mm (14 AWG) |
