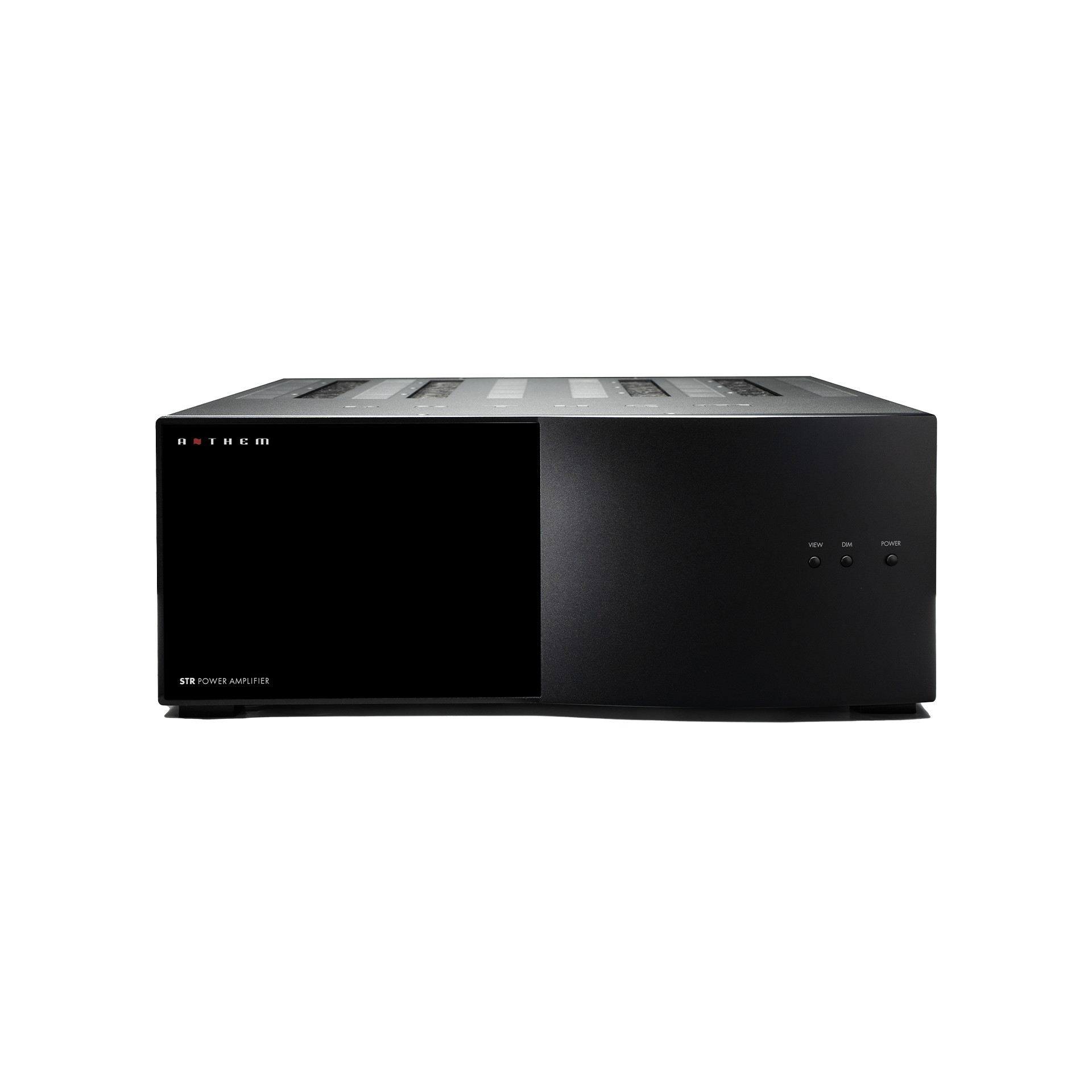

Uitvoering: Zwart
Anthem

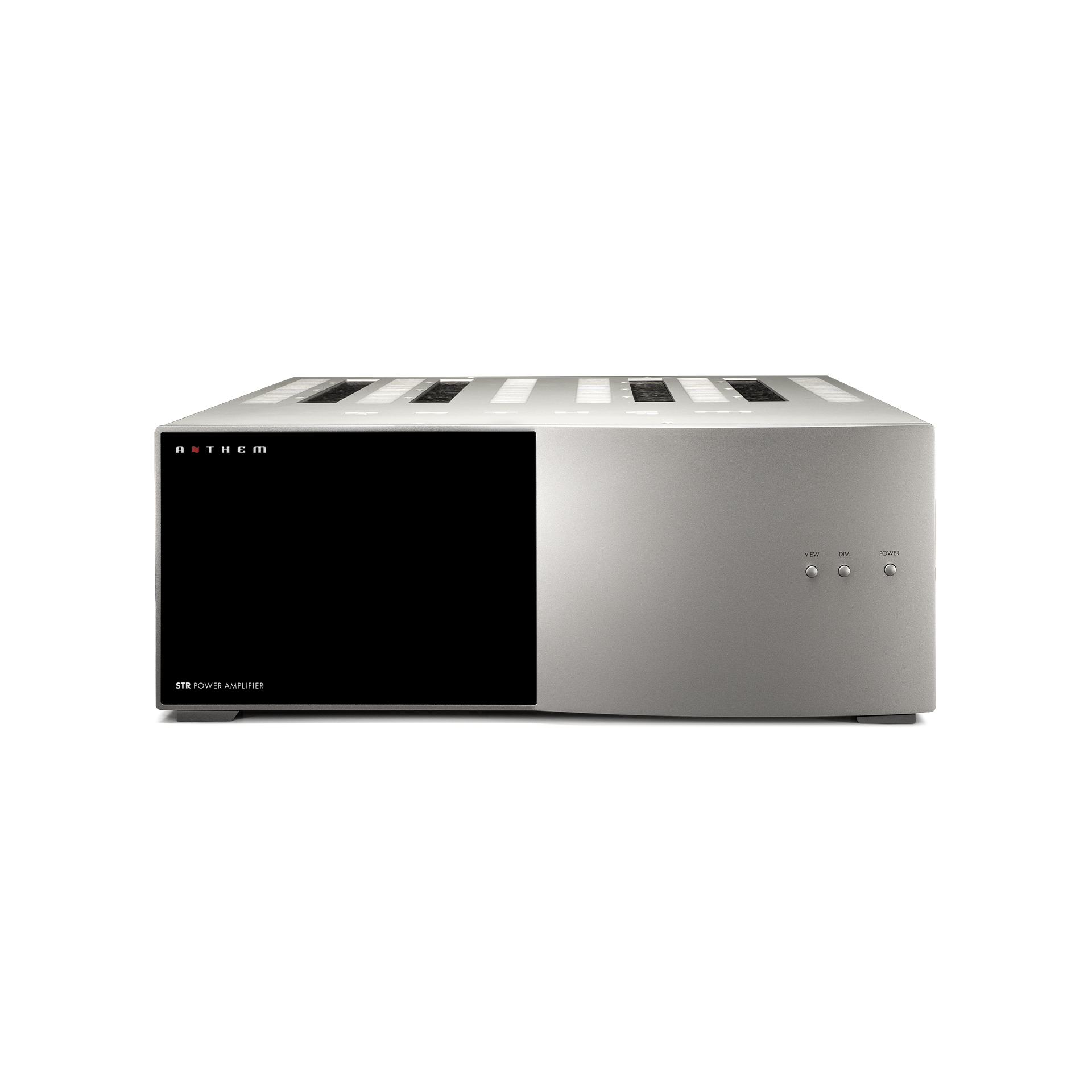

STR Power Amplifier
Eindversterkers
Vraag advies of een luisterafspraakDownload specificaties (PDF)
Persoonlijk advies · Vries, Drenthe
Fabrikantgegevens
Technische
specificaties
| Merk | Anthem |
|---|---|
| Model | STR Power Amplifier |
| Productcategorie | Eindversterkers |
| Frequentiebereik | 8Ω = 20 Hz - 20 kHz ± 0.1 dB 4Ω = 20 Hz - 20 kHz ± ?? dB 2Ω = 20 Hz - 20 kHz ± ?? dB |
| Ingangen | Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack) |
| Uitgangen | Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack) |
| Kanalen | 2 |
| Ingangsgevoeligheid | 2.1 Vrms |
| Ingangsimpedantie | 10kΩ (RCA), 15kΩ (XLR) |
| Slew rate | 30 V/μs |
| Kanaalscheiding | 101 dB (100 Hz), 98 dB (10 kHz) |
| Overspraak | n/a |
| Signaal-ruisverhouding | 121 dB (IEC-A, ref. 400 W) |
| Totale harmonische vervorming plus ruis | 0.0007% (1 kHz), 0.004% (20 kHz) @ 400 W |
| Intermodulatievervorming | ITU-R (19 kHz + 20 kHz) 0.0006% @ 300 W SMPTE (60 Hz + 7 kHz) 0.0016% @ 300 W |
| Dempingsfactor | (20 Hz - 1 kHz) 360 |
| Display voorzijde | 7" Graphic Display (Power Meter, Status, en Navigation) |
| Constructie | Anodized Aluminum Faceplate with Aluminum Chasis |
| Afmetingen (D) (excluding Power Cord) | 18-1/2” (47 cm) |
| Afmetingen (W) | 17” (43.2 cm) |
| Afmetingen (H) (with feet) | 6-3/4” (17.2 cm) |
| Hoogte met rackmontage | n/a |
| Verbruik zonder signaal | 65 W |
| Uitvoering 120 V | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. |
| Uitvoering 220–240 V | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
| Gewicht | 60 lb (27.3 kg) |
